EGN is a simulator tool for designing electron guns.
We get start with WinPED.exe at the folder polygon.
This tool imports the text file below.

TEST for EGN
 &INPUT1 RLIM=50,POTN=4,POT=0,1E4,PUNIT=0.0254 &end
    1    0.0000    1.1025
    1   10.0000    2.7290
    4   10.0000    2.7290
    4   16.0000    5.5000
 1004   45.0000   16.7469
   12.2531
 1004   47.5000   26.5000
    2.5000
    4   50.0000    0.0000
    2   60.0000    0.0000
    2   60.0000   50.0000
    2   30.0000   50.0000
 1002   14.1690   36.3104
    4.1523
 1002   12.6911   57.3108
    2.6892
    2   24.0000   60.0000
    2   24.0000  120.0000
    0    0.0000  120.0000
    1    0.0000    1.1025

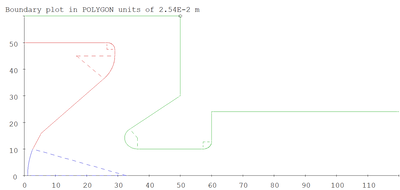

We get the figures below with WinPED.exe.

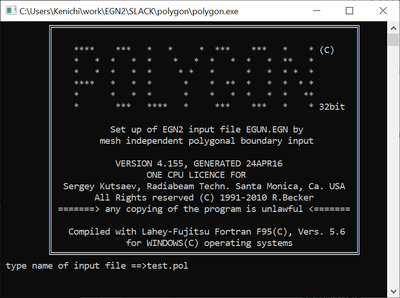

Using WinPED.exe, we change the geometry by clicking on the screen. Save your POL file when you finish the design. The next step is polygon.exe. Enter your POL file as below, and you get the EGN file.

Copy the EGN file to the EGNDAT folder.

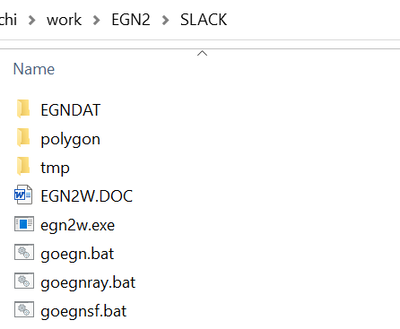

Then turn on the Command Prompt and move the folder. Use the goegn.bat if you have it. For example, you put the command below.

>GOEGN TEST EGN

Or, put the command below.

>EGN2W in=egndat\test.EGN out=tmp\test.out  plot=tmp\test.cpl

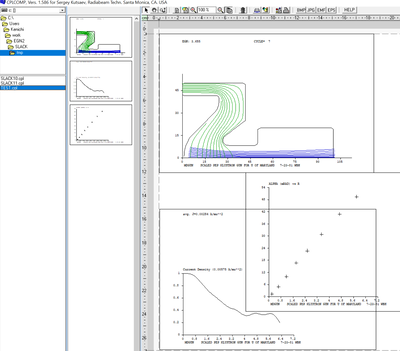

Don't forget your TMP folder if you don't see it. Then you get a CPL file in the TMP folder. The final step is cplcomp.exe. You have the execute the file in the polygon\cplcomp folder. Select your CPL file in the TMP folder and get the figures below.
